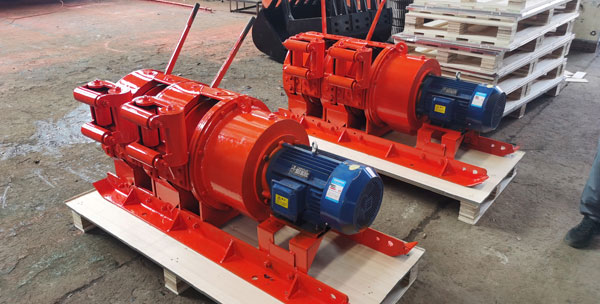

Underground mining scraper winch

The Underground mining scraper winch is a small traction equipment commonly used in mining, tunnel and other engineering projects.

1、 Main purpose
The Underground mining scraper winch is mainly used for transporting and filling ores in metal mines and other open-pit areas. It is mainly used for horizontal raking and can also be used for raking on slopes with small inclination angles, but cannot be used as a lifting equipment.

2、 Working principle
The working principle of the Underground mining scraper winch is to drive the reducer through an electric motor, which in turn drives the winch wheel (or drum) to rotate. During the rotation of the winch wheel, the steel wire rope wrapped around it will retract and retract, thereby pulling the rake bucket to move back and forth, achieving the operation of ore raking.

3、 Main components

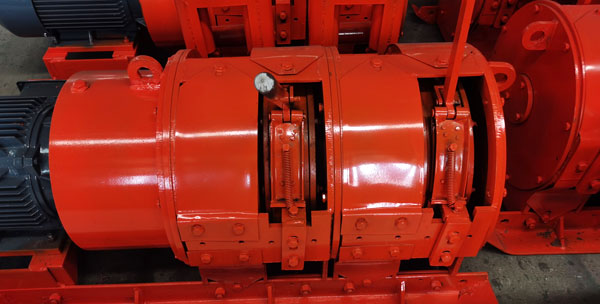

The Underground mining scraper winch is mainly composed of the following components:

Electric motor: provides power source to drive the winch wheel to rotate.
Gearbox: Convert the high-speed rotation of the electric motor into low-speed, high torque rotation of the grinding wheel to meet the needs of rake mining operations.
Winch wheel (drum): wraps the steel wire rope and achieves the retraction and extension of the steel wire rope through rotation.
Scraper bucket: a container used for loading and transporting ores, connected to a winch wheel through a steel wire rope.
Pulley: Used to change the direction of the steel wire rope, allowing the rake bucket to move along a predetermined trajectory.
Base: A structural component that supports the entire device, ensuring its stability and safety.
In addition, the rake winch may also be equipped with auxiliary components such as control devices and steel rope guidance devices to achieve precise control and operation of the equipment.

4、 Operation method
The operation method of the Underground mining scraper winch is relatively simple. The driver can manually operate it next to the winch, or use buttons to control the distance from several meters to tens of meters away from the winch. During the operation, it is necessary to adjust the speed of the steel wire rope and the position of the rake bucket according to actual needs to ensure the efficient and safe operation of the ore rake.

5、 Maintenance and upkeep
In order to ensure the long-term stable operation of the rake winch, regular maintenance and upkeep work is required. This includes checking the wear and tear of each component, cleaning and lubricating the components, replacing damaged parts, etc. At the same time, it is necessary to regularly conduct performance testing and safety inspections on the equipment to ensure that it meets usage requirements and ensures the safety of operators.

In summary, the Underground mining scraper winch , as an important mining equipment, plays a crucial role in ore handling and filling work. By understanding its basic information such as working principle, main components, and operation mode, one can better understand and use this equipment, providing strong support for mining production.
