Hex22 Pneumatic Rock Drilling Tools Taper Drill Rod
If you are interested in our products, Please get in contact with us .
E-mail: sales@sdkdrillingtools.com Chat Line Send InquirySmall Hole Drillig Tools Hex22 7/11/12 Degrees Tapered Rock Drill Rod For Jack Hammer

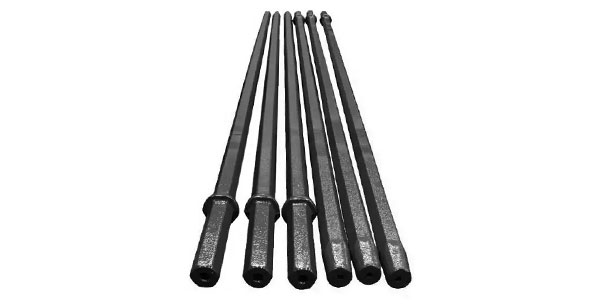

Tapered Rock Drill Rod
The tapered drill rods are used for Penumatic rock drill and Hydraulic rock drill.Medium hard to hard and abrasive rock formations. Such as Y24, Y26, YT24, YT27, YT28, YT29 and YN27C rock drill.
Specification
7 degrees tapered drill rod – H22x108mm shank
| Part Number | Length (mm) | Length (ft/inch) | Weight (kg) |
| 4148300179 | 600 | 2 | 1.93 |
| 4148300180 | 800 | 2 5/8 | 2.54 |
| 4148300181 | 1000 | 3 2/7 | 3.15 |
| 4148300185 | 1800 | 6 | 5.59 |
| 4148300188 | 2300 | 7 5/9 | 7.12 |
| 4148300193 | 3500 | 11 1/2 | 10.78 |
| 4148300194 | 4000 | 13 1/8 | 12.3 |
| 4148300196 | 5000 | 16 2/5 | 15.35 |
| 4148300198 | 6000 | 19 2/3 | 18.3 |
11 degrees tapered drill rod – H22x108mm shank
| Part Number | Length (mm) | Length (ft/inch) | Weight
(kg) |
| 4148300241 | 610 | 2 | 2.2 |
| 4148300242 | 1220 | 4 | 4.1 |
| 4148300243 | 1830 | 6 | 5.9 |
| 4148300244 | 2000 | 6 5/9 | 6.4 |
| 4148300252 | 6400 | 21 | 19.8 |
| 4148300253 | 7200 | 23 5/8 | 22.2 |
| 4148300254 | 8000 | 26 1/4 | 24.6 |
