T thread Self Drilling Anchor Bars
The Self Drilling Anchor system is comprised of a hollow threaded anchor bar with a sacrificial drill bit that performs drilling, anchoring and grouting in a single operation.
The Self Drilling Anchor system is comprised of a hollow threaded anchor bar with a sacrificial drill bit that performs drilling, anchoring and grouting in a single operation.
SHANDIKE（SDK）T thread Self Drilling Anchor Bars

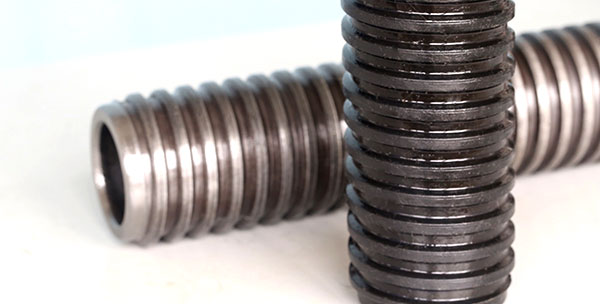

Hollow anchor bar is the body of a self-drilling anchor, as a hollow steel tube with an outer round thread, hollow anchor has the sacrificial anchor bit connected at one side, plate and nut connected at the other; two hollow anchor bars could be connected together via a coupling, for duties that requiring longer anchors.
Features
• Stable quality;
• Thread is compatible with ISO and other international standards;
• Good mechanical performance.
Applications
Pre-supporting, micropiling for foundation underpinning, slope anchorage, etc.
 |
|||||

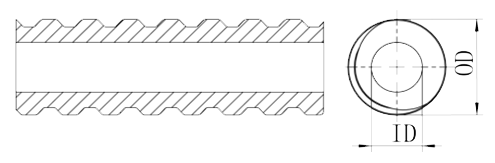

| Size | O.D (mm) | I.D (mm) | Ultimate Load (kN) | Yield Load (kN) | Weight (kg/meter) |
| T30-11 | 30.0 | 11.0 | 320 | 260 | 3.3 |
| T30-14 | 30.0 | 14.0 | 275 | 220 | 2.9 |
| T30-16 | 30.0 | 16.0 | 245 | 190 | 2.7 |
| T40-16 | 40.0 | 16.0 | 660 | 525 | 7.1 |
| T40-20 | 40.0 | 20.0 | 540 | 425 | 5.6 |
| T52-26 | 52.0 | 26.0 | 930 | 730 | 10 |
| T73-56 | 73.0 | 56.0 | 1035 | 830 | 10.8 |
| T73-53 | 73.0 | 53.0 | 1160 | 970 | 14 |
| T73-45 | 73.0 | 45.0 | 1600 | 1270 | 17.5 |
| T103-78 | 103.0 | 78.0 | 2270 | 1800 | 25 |
| T103-51 | 103.0 | 51.0 | 3660 | 2670 | 44 |
| Thread direction: Left hand / Right hand | |||||
| Thread standard: ISO10280 / ISO1720 / Other international standards | |||||
