Introduction to SHANDIKE QL60 Shank (6’’) DTH Hammers And Bits

Here is the reorganized content in English, with a clear structure, unified format, and tables for parameter presentation:

QL60 Shank (6”) DTH Bits and Hammers

Product Overview

Down-the-Hole (DTH) bits and hammers are essential equipment for DTH drilling, a method used for drilling large and deep holes in various rock and earth formations. The DTH hammer, driven by compressed air, delivers percussive forces to the DTH bit, which breaks the rock into small fragments. The QL60 series is known for its high efficiency and durability, making it a preferred choice for mining, geological exploration, and water well drilling.

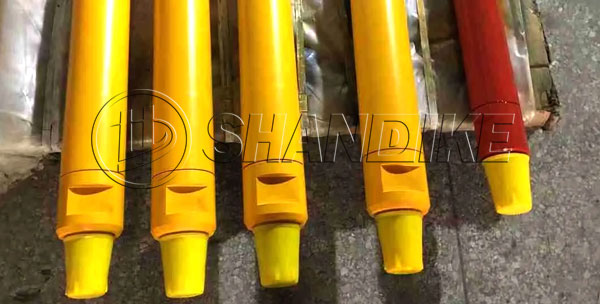

QL60 DTH Hammer Specifications

– Outer Diameter: 148.5mm

– Hole Diameter: 155-190mm

– Connection Thread: API 3 1/2” REG

– Maximum Working Pressure: 3.0MPa

– Impact Frequency: 32Hz (at 18Bar)

– Rotation Speed: 25-55r/min

– Air Consumption: 20m³/min (at 18Bar)

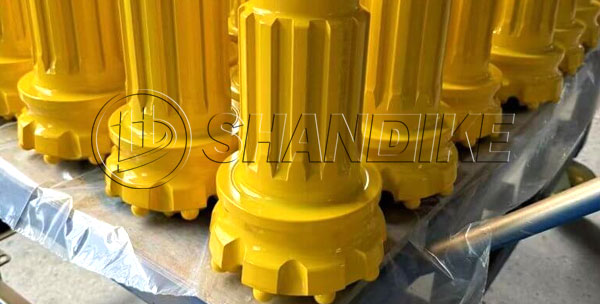

QL60 DTH Bit Specifications

The QL60 drill bits are available in three designs: Flat Face, Concave Face, and Convex Face. Detailed specifications are as follows:

#1. Flat Face Bits

| Model        | Button Configuration | Flushing Holes | Weight (kg) |

|————–|———————-|—————-|————-|

| QL60-152MM  | 8×16 + 8×16          | 2              | 20          |

| QL60-156MM  | 8×16 + 8×16          | 2              | 23          |

| QL60-160MM  | 8×18 + 9×16          | 2              | 24          |

| QL60-165MM  | 8×18 + 8×16          | 2              | 25          |

| QL60-171MM  | 10×18 + 10×16        | 2              | 26          |

| QL60-178MM  | 10×18 + 10×16        | 2              | 27          |

#2. Concave Face Bits

| Model        | Button Configuration             | Flushing Holes | Weight (kg) |

|————–|———————————-|—————-|————-|

| QL60-152MM  | 8×16 + 4×16 + 4×16              | 2              | 20          |

| QL60-156MM  | 8×16 + 4×16 + 4×16              | 2              | 23          |

| QL60-159MM  | 8×16 + 4×16 + 4×16              | 2              | 24          |

| QL60-165MM  | 8×18 + 4×18 + 4×16              | 2              | 25          |

| QL60-171MM  | 8×18 + 4×18 + 4×16              | 2              | 26          |

| QL60-178MM  | 8×19 + 4×18 + 5×16              | 2              | 27          |

| QL60-190MM  | 10×19 + 5×18 + 5×16             | 2              | 28          |

| QL60-203MM  | 10×19 + 6×18 + 7×16             | 2              | 29          |

#3. Convex Face Bits

| Model        | Button Configuration         | Flushing Holes | Weight (kg) |

|————–|——————————|—————-|————-|

| QL60-165MM  | 9×19 + 6×19 + 5×19           | 3              | 25          |

| QL60-171MM  | 9×19 + 6×19 + 5×19           | 3              | 26          |

Product Features and Advantages

1. Versatile Designs: Flat, concave, and convex face designs to meet various drilling needs in different rock formations.
2. High Wear Resistance: Tungsten carbide buttons (spherical, ballistic, and conical options available) ensure extended service life.
3. Efficient Flushing: Equipped with 2-3 flushing holes for rapid debris removal, enhancing drilling efficiency.
4. Lightweight Construction: Weights range from 20-29kg, reducing operator fatigue.

Applications: Mining, water well drilling, geological exploration, and other hard rock drilling operations.
