Low air pressure DTH drill bits

• Product introduction
• Product parameters

Introduction to Low air pressure DTH drill bits

SDK is in the position to offer a very comprehensive range of DTH drill bits to match various conceivable drilling applications. DTH (Down the Hole) drill bits are widely used for large scale mine (open and underground), open quarry, water-well drilling, tunnel, geothermal drilling, subway engineering drilling, roads, power stations and other construction projects. Our drill bits adopt special heat treatment technology to enhance hardness, surface-compressed for fatigue resistance, all thus to extend the product life for maximum wear and performance in the toughest of drilling conditions.

The features

• Raw material: premium quality steel and YK 05 tungsten carbide.

• Working pressure: below 10bar/1 Mpa

• Low air pressure DTH drill bits diameter: 65mm-185 mm

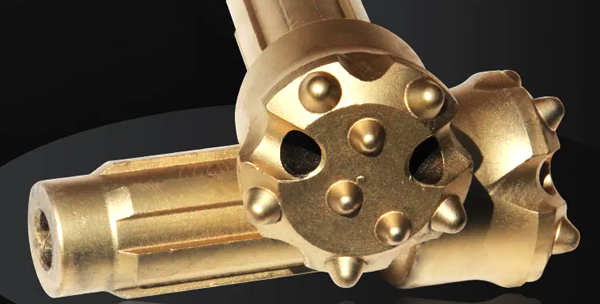

• Carbide buttons shapes: ballistic and conical button

• Face type: flat and convex face

• Rock Application: medium-hard and homogeneous formation, soft rock and fissured rock formations

Specifications：

			NO.Button size
Number	Model	Bit Dia.(mm)	Front button	Gauge button	Connection	Gauge tooth angle
D001	D76-CIR76-9Z-45-B12	76	3×12	6×12	CIR76	45°
D002	D80-CIR76-9Z-45-B12	80	3×12	6×12	CIR76	45°
D003	D90-CIR90-10Z-45-B14	90	2×13 / 2×14	6×14	CIR90	45°
D004	D100-CIR90-11Z-45-B14	100	3×12 / 2×14	6×14	CIR90	45°
D005	D110-CIR90-13Z-45-B14	110	4×12 / 3×14	6×14	CIR90	45°
D006	D120-CIR90-14Z-45-B14	120	5×12 / 3×14	6×14	CIR90	45°
D007	D130-CIR90-15Z-45-B14	130	5×12 / 3×14	7×14	CIR90	45°
D008	D130-CIR90-15Z-45-B14	130	5×12 / 3×14	7×14	CIR90	45°
D009	D120-CIR110-14Z-45-B14	120	5×12 / 3×14	6×14	CIR110	45°
D010	D130-CIR110-15Z-45-B14	130	5×12 / 3×14	7×14	CIR110	45°
D011	D140-CIR110-15Z-45-B14	140	5×12 / 3×14	7×14	CIR110	45°
D012	D150-CIR110-19Z-45-B14	150	4×12 / 6×14	9×14	CIR110	45°
D013	D160-CIR110-19Z-45-B16	160	4×14 / 6×14	9×16	CIR110	45°
D014	D170-CIR110-19Z-45-B16	170	4×14 / 6×14	9×16	CIR110	45°
D015	D150-CIR150-19Z-45-B16	150	4×14 / 6×14	9×16	CIR150	45°
D016	D165-CIR150-20Z-45-B16	165	5×14 / 6×14	9×16	CIR150	45°
D017	D175-CIR150-20Z-45-B16	175	6×14 / 5×14	9×16	CIR150	45°
D018	D185-CIR150-22Z-45-B16	185	7×14 / 6×14	9×16	CIR150	45°
D019	D110-110P-15Z-45-B14（Russian）	110	7×12 / 7×12	8×14 / 8×12	110P	45°
