High air pressure DTH drill bits

• Product introduction
• Product parameters

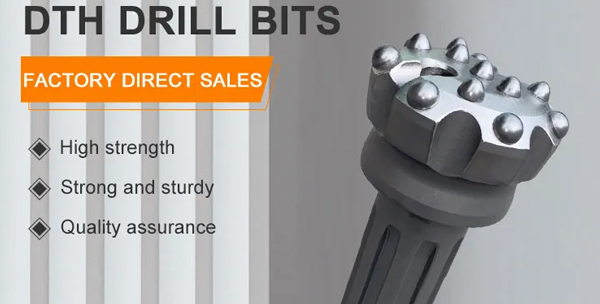

Introduction to High air pressure DTH drill bits

SDK is in the position to offer a very comprehensive range of DTH drill bits to match various conceivable drilling applications. DTH (Down the Hole) drill bits, also called spline connected drill bit, are widely used for large scale mine (open and underground), open quarry, water-well drilling, tunnel, geothermal drilling, subway engineering drilling, roads, power stations, and other construction projects. Our drill bits adopt special heat treatment technology to enhance hardness, surface-compressed for fatigue resistance, all thus to extend the product life for maximum wear and performance in the toughest of drilling conditions.

The features

• Raw material: premium quality nickel-alloy steel 23CrNi3Mo and YK 05 tungsten carbide

• High air pressure DTH drill bits diameter: 85-280mm

• Working pressure: 10-30bar mm

• High air pressure Shank types: DHD, COP, Mission, QL, SD etc.

• Bit face types: flat face, drop center, concave face, convex face

• Carbide button shapes: sphercial button, parabolic/semi-ballistic button, ballistic button, sharp button, flat button

• Rock Applications: very hard and abrasive rock formation, medium-hard and homogeneous formation, soft rock and fissured rock formationss

Specifications：

High air pressure DTH bits
Drill Bit	Bit Dia.(mm)	Flushing Holes	Gauge Buttons	Front Buttons	Weight (kg)
DHD3.5 Cop34 M30	85	2	6×Φ13	4×Φ12	4.8
	90	2	6×Φ14	4×Φ13	4.9
	95	2	6×Φ14	4×Φ12	5.2
	100	2	6×Φ14	5×Φ13	5.8
	105	2	6×Φ14	5×Φ13	6.2
DHD340 Cop44 QL40 M40 SD4	105	2	7×Φ14	6×Φ13	8.0
	110	2	8×Φ14	6×Φ13	8.5
	115	2	8×Φ14	7×Φ13	8.8
	120	2	8×Φ14	7×Φ13	9.0
	127	2	8×Φ16	7×Φ14	9.8
DHD350 Cop54 QL50 M50 SD5	135	2	7×Φ18	7×Φ14	15.2
	138	2	7×Φ18	7×Φ14	15.5
	140	2	8×Φ16	7×Φ14	15.5
	146	2	8×Φ18	8×Φ14	15.7
	150	2	8×Φ16	9×Φ14	15.8
	156	2	8×Φ18	8×Φ14	16.4
	160	2	8×Φ16	8×Φ16	17.1
	165	2	8×Φ16	9×Φ14	17.7
	178	2	9×Φ18	10×Φ16	20.7
DHD360 COP64 QL60 M60 SD6	152	2	8×Φ16	4×Φ16+4×Φ14	22
	165	2	8×Φ18	4×Φ18+5×Φ16	25
	172	2	8×Φ18	4×Φ18+4×Φ16	26
	178	3	9×Φ18	5×Φ18+5×Φ16	27
	185	2	8×Φ19	5×Φ19+5×Φ16	28
	190	3	10×Φ18	5×Φ16+5×Φ16	29
	195	2	10×Φ18	5×Φ18+5×Φ16	29.5
	203	2	10×Φ18	6×Φ18+7×Φ16	30
	216	2	10×Φ18	6×Φ18+7×Φ16	31
	219	2	10×Φ18	6×Φ18+7×Φ16	32
DHD380 COP84 QL80 M80 SD8	198	2	10×Φ18	6×Φ18+7×Φ16	40
	203	2	10×Φ18	6×Φ18+7×Φ16	41
	210	2	10×Φ18	6×Φ18+8×Φ16	42
	216	2	10×Φ18	6×Φ18+7×Φ16	43
	219	2	10×Φ18	6×Φ18+7×Φ16	43
	220	3	10×Φ18	6×Φ18+7×Φ16	44
	230	2	10×Φ18	6×Φ18+9×Φ16	45
	235	2	10×Φ18	6×Φ18+9×Φ16	55
	240	2	10×Φ18	6×Φ18+9×Φ16	60
	254	3	12×Φ18	12×Φ18+8×Φ16	65
	271	3	12×Φ18	12×Φ18+8×Φ16	72
	280	3	12×Φ18	12×Φ18+11×Φ16	85
