Selection and Design of Threaded Drill Button Bits

Date: Feb. 28, 2024

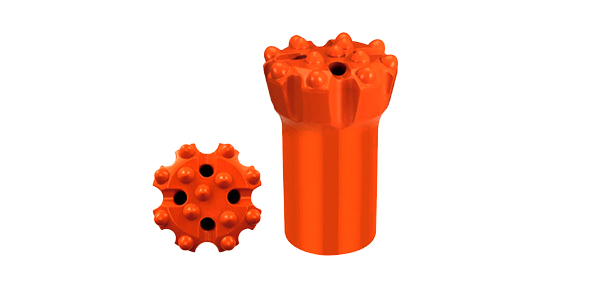

Threaded drill button bits are an essential component when it comes to drilling through various materials like rock, soil, and concrete. Their selection and design depend on various factors like hole size, drilling conditions, and drilling method. Here are some things to consider:

1. Size of the Hole: The size of the hole you need to drill is an essential factor when selecting the threaded drill button bits. The bit size should match the size of the hole you want to drill, lest it might not produce the desired outcome.

2. Drilling Conditions: The drilling conditions also determine the type of button bits you require. Harsh drilling conditions will require heavy-duty and durable materials to handle the pressure. For instance, if you plan to drill through hard rock, you will need a more robust bit with high-quality carbide inserts.

3. Drilling Method: There are various drilling methods, including rotary drilling, top hammer drilling, and DTH drilling. The method you choose will affect the type of threaded drill button bit you require. For instance, top hammer drilling requires a more durable button bit design to handle the more significant impact frequency.

4. Type of Material: Various types of button bits work better on specific materials. For instance, a tungsten carbide button bit works better on hard materials, while a diamond button bit works better on softer materials.

5. Design of the Bit: The design of the threaded drill button bit affects its effectiveness. The shape of the tungsten carbide inserts, the number of buttons and buttons’ spacing, and the bit angle are all design features to consider when selecting a bit.

Overall, it is essential to select a threaded drill button bit that will match your drilling conditions and provide the best results possible.
